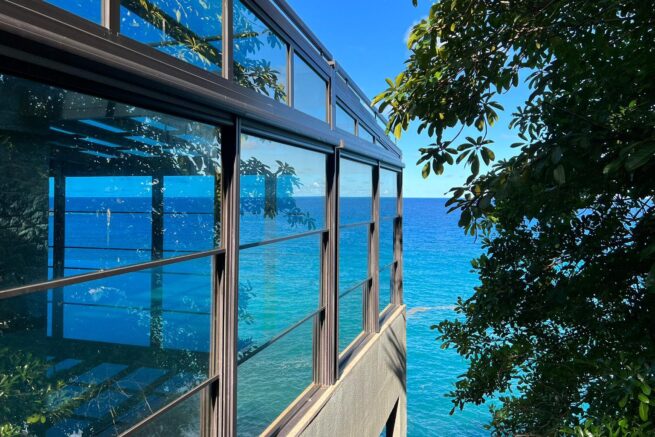

VERTIARC – Vertical Sliding System

  1. General Details

    Where endurance meets aesthetics

     System Features:

    • System allows you to create open or closed spaces without occupying extra space and allows effective ventilation without a security risk
    • Strong chains of moving system ensures highest security and long years durability with minimal maintenance
    • Easy manufacturing thanks to easily inserted parts of the mechanism that doesn’t require screwing
    • Panel profiles that allow using single or double glass
    • Interlocking structure of panel profiles and insulation brushes that are used in all sides of the system ensure highest insulation
    • Robust profile structure, 3 panel design and interlocking between the panels, allow highest wind resistance and security
    • Aesthetic caps of track profile and elegant design of track and panel profiles, allow maximum transparency
    • Photocell mechanism that increase the usage security
    • Maximum stability of panels even in case of power outage
    • 120 N – 275 kg strong motor mechanism that is hidden at top track block, ensures smooth and well-proportioned movement of panels
    • Panels can either collect at top to create a non-threshold walk-through area or at the bottom to create a balustrade
  2. Technical Details
    Minimum Width:800
    Maximum Width:Up to 4700
    Minimum Height:940
    Maximum Height:Up to 3500
    50%, 66%, 75% opening options
    Options for upward and downward stacking
    Wind support profile, magnetic lock, and point sensor options
  3. Uses and Benefits Of Movable Glass Systems
    • Enables to create extra spaces and enlarges your living / service spaces and creating shade when needed.
    • Protects from harsh weather conditions, dirt, noise etc. while providing thermal insulation.
    • Reduces heating/cooling expenses of the building by increased insulation and extends building life cycle by reduced corrosion.
    • Increases the security by their locking systems.
    • Easy to clean thanks to folding and sliding panels.
    • Silent and comfortable use with wheel system design.
    • Enables maximum transparency comparing to standard window systems.
    •  Ability to glaze different angular spaces.
  4. Video
